Product Type:

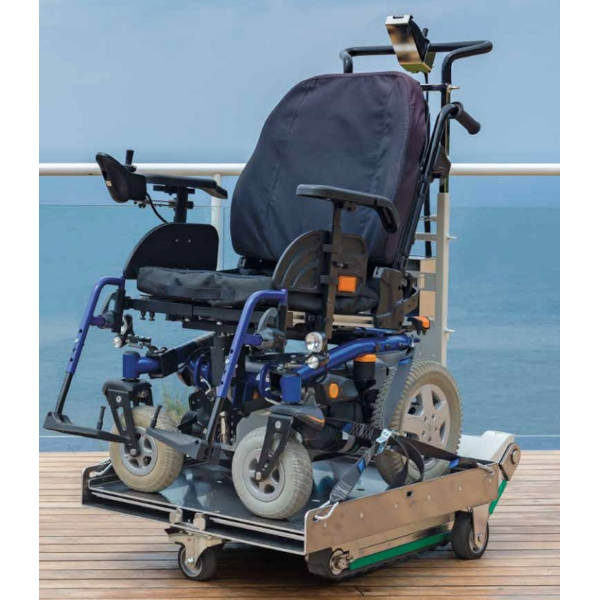

Stair climber
Auxiliary person operation
Wheelchair coupling
Areas of Application:
- Straight stairs
- Outdoor and indoor areas
Features / Components:
- Control: proportional joystick, automatic or manual inclination correction on the steps (dual operating mode)
- Brakes: electromagnetic
- 360 degree rotation possible on the steps
- Horizontal travel on fixed castors
- Manual changeover to the roller carriage
- Emergency stop switch
- Self-locking gear
Technical Data:
Slim People
Chain speed(m/min): 6m per min. 4m per min.
Stair incline (degrees): 35 35
Reach: 500 steps 300 steps
Total weight including battery (kg): 92 130
Weight of battery (kg): 16.5 16.5
Width (cm): 67 70
Length (cm): 95 116.5
Height (cm): 122 116.5
Maximum load (kg): 160Kg 400kg
Price (without guarantee):
The price is available on request from the manufacturer / distributor.
