Product type:
Electric wheelchair with rear-wheel drive
Use: Outdoor and indoor
Description:

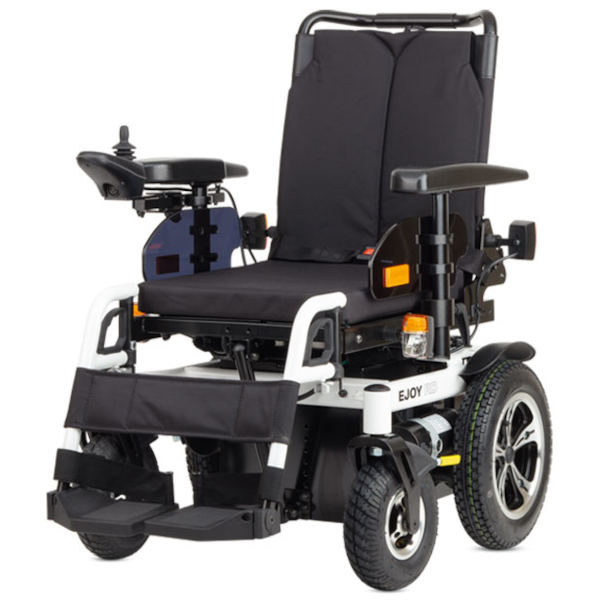

The Ejoy RD electric wheelchair has various adjustment options. It is also available in three seat widths. The Ejoy RD XXL wheelchair has a load capacity of 250 kg. It can be used outdoors and indoors.
Features/components:
- Frame: steel, aluminum (Ejoy RD XXL)
- Push bar
- Backrest: manually adjustable angle
- Seat: seat cushion (5 cm)
- Seat dimensions: height-adjustable, angle-adjustable, selectable seat width, selectable seat depth, selectable seat height
- Side panels: height-adjustable, width-adjustable, extendable (plus 6 cm per seat width)
- Armrests: height-adjustable, length-adjustable, swivel-away
- Controls: joystick controls, can be mounted on the right or left
- Leg supports: swivel-away
- Footrests: one-piece, angle-adjustable, swivel-away
- Rear wheel tires: PU tires, rear wheel suspension; front wheel tires: PU tires
- Brake: motor brake
- Drive: rear-wheel drive Product type:
Electric wheelchair with rear-wheel drive
Use: Outdoor and indoor
Technical data:
Ejoy RD Ejoy RD XL Ejoy RD XXL
Total width: 62 - 83 cm 62 - 83 cm 76 - 98 cm
Total length (with leg supports): 107 cm 107 cm 112.5 cm
Total height: 96 - 109 cm 96 - 109 96 - 109 cm
Seat width: 42 / 47 / 52 cm 42 / 47 / 52 cm 58 / 63 / 68 cm
Seat height (rear): 43 / 45 / 47 / 49 / 51 / 53 cm 43 / 45 / 47 / 49 / 51 / 53 cm 43 / 45 / 47 / 49 / 51 / 53 cm
Seat depth: 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 cm 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 cm 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 cm
Seat angle: 0 - 20 degrees 0 - 20 degrees 0 - 20 degrees
Back height: 50 cm 50 cm 50 cm
Back angle: 90 - 120 degrees (4 levels); 100 - 142 degrees (electrically adjustable, available for an additional charge) 90 - 120 degrees (4 levels); 100 - 142 degrees (electrically adjustable, available for an additional charge) 90 - 120 degrees (4 levels); 100-142 degrees (electrically adjustable, at extra cost)
Rear wheels: 14 inches
Front wheels: 9 inches
Top speed: 6 km/h; 10 km/h (at extra cost)
6 km/h 10 km/h (with surcharge) 6 km/h
Batteries: 56 Ah / 80 Ah (with surcharge) 56 Ah / 80 Ah (with surcharge) 80 Ah
Range: 35 km 35 km 35 km
Obstacle height: 5 cm 5 cm 5 cm
Gradeability: 14 percent 14 percent 14 percent
Weight: from 104 kg from 104 kg from 108 kg
Load capacity: 140 kg 170 kg 200 kg / 250 kg (at an additional cost)
GKV aid numbers:
Basic model Ejoy RD: 18.50.04.0222
Basic model Ejoy RD XL: 18.50.04.3002
Basic model Ejoy RD XXL: 18.50.04.5007
Options / accessories:
- Headrest: height-adjustable, depth-adjustable
- Backrest: electrically adjustable angle, contoured back cushion
- Seat: contoured seat cushion
- Seat dimensions: electrically adjustable angle
- Controls: electrically adjustable, attendant controls on right/left
- Leg supports: electrically adjustable
- Rear wheel tires: pneumatic tires; front wheel tires: pneumatic tires
- Other: amputation leg support
Price (without guarantee):
Basic model Ejoy RD: EUR 5,460.00
Basic model Ejoy RD XL: EUR 5,871.00
Basic model Ejoy RD XXL: EUR 13,500.00
The prices are recommended retail prices including VAT.
