Product Type:
Mid-Drive Electric Wheelchair
Use: Indoor and Outdoor
Description:

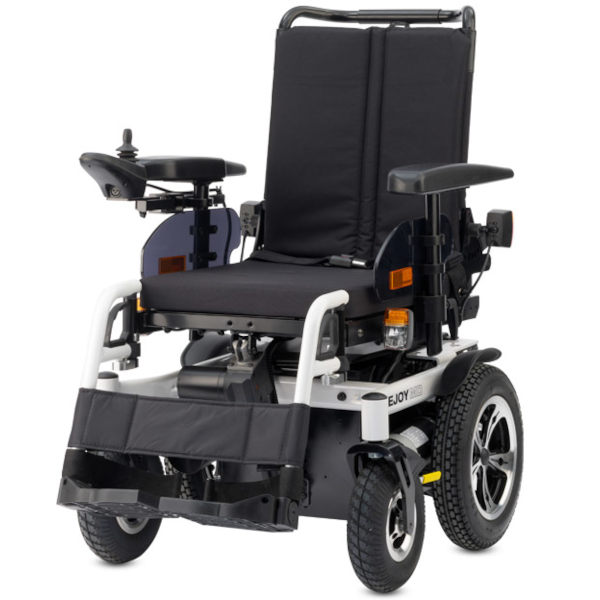

The Ejoy MD electric wheelchair offers a variety of adjustment options. Thanks to its mid-drive design, the Ejoy MD is highly maneuverable compared to other electric wheelchairs and is suitable for tight spaces. It is also available in two versions with different load capacities. It can be used indoors and outdoors.
Features / Components:
- Frame: Steel
- Push bar
- Backrest: Manually angle-adjustable
- Seat: Seat cushion (5 cm)
- Seat dimensions: Height-adjustable, angle-adjustable, selectable seat width, selectable seat depth, selectable seat height
- Side panels: Height-adjustable, width-adjustable, extendable (plus 2.5 cm per seat width)
- Armrests: Height-adjustable, length-adjustable, swiveling
- Controls: Joystick control, can be mounted on the right or left
- Legrests: Swiveling, removable
- Footrests: Split, angle-adjustable, swiveling
- Wheels: Rear wheel suspension
- Rear tire: Pneumatic tires; Front tire: Pneumatic tires
- Brake: Engine brake
- Drive: Mid-wheel drive
- Charger
- Lighting: Active lighting systems, passive lighting system
- Other: Anti-tip casters
- Frame color: White; Cover color: Black
Technical data:
Ejoy MD Ejoy MD XL
Total width: 62 - 72 cm
62 - 72 cm
Total length (with legrests): 112 cm
Total height: 96 - 109 cm
Seat width: 42 / 47 / 52 cm
42 / 47 / 52 cm
Seat height (rear): 43 / 45 / 47 / 49 / 51 / 53 cm
Seat depth: 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 cm
40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 cm
Seat angle: 0-20 degrees
0-20 degrees
Back height: 50 cm
Back angle: 90-120 degrees (4 levels); 100-142 degrees (electrically adjustable, available for an additional charge)
Rear wheels: 14 inches
Front wheels: 9 inches
Top speed: 6 km/h
10 km/h (available for an additional charge)
6 km/h 10 km/h (with surcharge)
Batteries: 56 Ah / 80 Ah (with surcharge)
Range: 35 km
Obstacle height: 5 cm
Gradeability: 14 percent
Weight: from 110 kg
Load capacity: 140 kg
170 kg
Statutory Health Insurance Aid Numbers:
Basic model Ejoy MD: 18.50.04.0224
Basic model Ejoy MD XL: 18.50.04.3004
Options / Accessories:
- Headrest: height-adjustable, depth-adjustable
- Backrest: electrically angle-adjustable, contoured back cushion
- Seat: contoured seat cushion
- Seat dimensions: electrically angle-adjustable
- Controls: electrically adjustable, attendant controls right/left
- Legrests: electrically adjustable
- Footrest: one-piece
- Rear tires: PU tires; Front tire: PU tires
- Other: Amputation leg support
Price (without guarantee):
Basic model Ejoy MD: EUR 6,287.00
Basic model Ejoy MD XL: EUR 6,698.00
These prices are recommended retail prices including VAT.
