Product type:
Electric wheelchair with front-wheel drive
Use: Outdoor and indoor
Description:

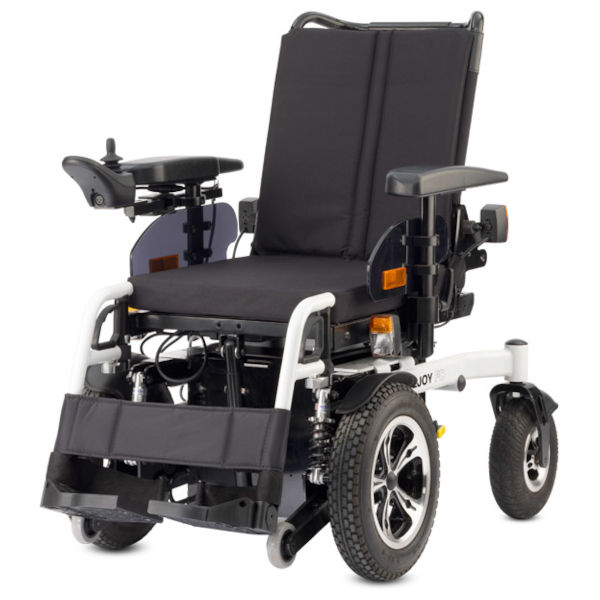

The Ejoy FD electric wheelchair offers a variety of adjustment options. It is also available in three versions with different load capacities and seat widths. It can be used both indoors and outdoors.
Features / Components:
- Frame: Steel
- Push bar
- Backrest: Manually angle-adjustable
- Seat: Seat cushion (5 cm)
- Seat dimensions: Height-adjustable, angle-adjustable, selectable seat width, selectable seat depth, selectable seat height
- Side panels: Height-adjustable, width-adjustable, extendable (plus 9 cm per seat width)
- Armrests: Height-adjustable, length-adjustable, swiveling
- Controls: Joystick control, can be mounted on the right or left
- Legrests: Swiveling, removable
- Footrests: Split, angle-adjustable, swiveling
- Wheels: Front wheel suspension
- Rear tire: Pneumatic tires; Front tire: Pneumatic tires
- Brake: Engine brake
- Drive: Front-wheel drive
- Charger
- Lighting: Active lighting systems, passive lighting system
- Other: Anti-tip casters
- Frame color: White; Cover color: Black
Technical data:
Ejoy FD Ejoy FD XL Ejoy FD XXL
Total width: 62 - 83 cm
62 - 83 cm
Total length (with legrests): 107 cm
107 cm
Total height: 96 - 109 cm
96 - 109 cm
96 - 109 cm
Seat width: 42 / 47 / 52 cm
42 / 47 / 52 cm
58 / 63 / 68 cm
Seat height (rear): 43 / 45 / 47 / 49 / 51 / 53 cm
43 / 45 / 47 / 49 / 51 / 53 cm
Seat depth: 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 cm 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 cm 40 / 42.5 / 45 / 47.5 / 50 / 52.5 / 55 cm
Seat angle: 0 - 20 degrees 0 - 20 degrees 0 - 20 degrees
Back height: 50 cm 50 cm 50 cm
Back angle: 90 - 120 degrees (4 levels); 100 - 142 degrees (electrically adjustable, available for an additional charge) 90 - 120 degrees (4 levels); 100 - 142 degrees (electrically adjustable, available for an additional charge) 90 - 120 degrees (4 levels); 100-142 degrees (electrically adjustable, optional)
Rear wheels: 9 inches
Front wheels: 14 inches
Top speed: 6 km/h; 10 km/h (optional)
6 km/h 10 km/h (with surcharge) 6 km/h
Batteries: 56 Ah / 80 Ah (with surcharge) 56 Ah / 80 Ah (with surcharge) 80 Ah
Range: 35 km 35 km 35 km
Obstacle height: 5 cm 5 cm 5 cm
Gradeability: 11 percent 11 percent 11 percent
Weight: from 104 kg from 104 kg from 108 kg
Load capacity: 140 kg 170 kg 250 kg
GKV aid numbers:
Basic model Ejoy FD: 18.50.04.0223
Basic model Ejoy FD XL: 18.50.04.3003
Basic model Ejoy FD XXL: 18.50.04.5008
Options / Accessories:
- Headrest: height-adjustable, depth-adjustable
- Backrest: electrically angle-adjustable, contoured back cushion
- Seat: contoured seat cushion
- Seat dimensions: electrically angle-adjustable
- Controls: electrically adjustable, attendant control right/left
- Legrests: electrically adjustable
- Footrest: one-piece
- Rear wheel tires: PU tires; front wheel tires: PU tires
- Other: amputee leg support
Price (without guarantee):
Basic model Ejoy FD: EUR 5,871.00
Basic model Ejoy FD XL: EUR 6,282.00
Basic model Ejoy FD XXL: EUR 15,065.00
These prices are recommended retail prices including VAT.
