Product Type:

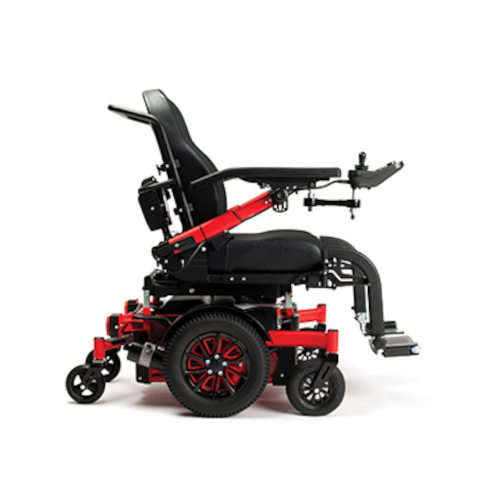

Power wheelchair with central wheel drive
Area: Outdoor and indoor use
Description:
The SIGMA power wheelchair has various adjustment options. Thanks to a special suspension with three pendulum axles, all 6 wheels of the wheelchair are permanently on the ground. This means that the SIGMA stands and drives stably on any type of surface.
Features / components:
- Push bar
- Back: upholstered, manually adjustable
- Seat: upholstered
- Seat dimensions: selectable seat width, selectable seat depth, manually depth-adjustable, manually angle-adjustable
- Armrests: PU material
- Controls: joystick control, Linx control, left / right
- Footrests: removable, shortened
- Tyres front wheels: PU tyres; tyres middle wheels: PU tyres
- Brake: motor brake
- Drive: middle wheel drive
- Batteries
- Charger
- Lighting: active lighting system
- Colors: frame: various colors; color cover: black / gray
Technical Data:
Overall width: 61.8 / 63 / 68 cm
Overall length: 117.7 cm
Seat width: 40 / 45 / 50 cm
Seat height: 43.5 / 45 / 46.5 / 48 / 49.5 cm
Seat depth: 42 / 44 / 46 / 48 / 50 / 52 cm
Seat angle: 0 - 21 degrees (without surcharge) ; 0 - 20 degrees / 0 - 50 degrees / 0 - 45 degrees (with surcharge)
Back height: 61 cm
Maximum speed: 6 km/h / 10 km/h (with surcharge)
Battery: 80 Ah
Range: 35 km
Turning radius: 120 cm
Climbing ability: 10.5 percent
Obstacle height: 5 cm
Weight: from 141 kg
Load capacity: 140 kg
Options / Accessories:
- Push bar
- Headrest: height-adjustable, depth-adjustable, width-adjustable
- Backrest: various back cushions, manually adjustable with gas pressure spring, electrically adjustable
- Seat: various seat cushions
- Seat dimensions: electrically angle-adjustable
- Side parts: side support
- Armrests: PU arm shell, hemiplegic armrest
- Controls: swivel-down, attendant control, various attachments, chin control, button control
- Leg supports: manually height-adjustable, electrically height-adjustable, angle-adjustable
- Footrests: electrically adjustable, monobloc footrest
- Tires, center wheels: pneumatic tires
- Other: spreader wedge, lift system SE42
Price (without guarantee):
Basic model SIGMA: 7.188.00 EUR plus VAT (recommended retail price)
