Product Type:
Power wheelchair with mid-wheel drive, seat tilt
Use: Outdoor and indoor
Description:

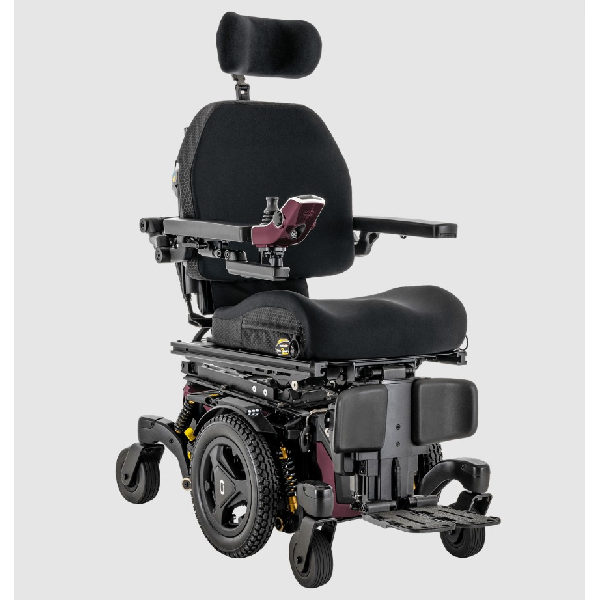

The Q6 Edge 3 Stretto MWD power wheelchair has various adjustment options. It has a center wheel drive and an electric seat tilt. The wheelchair is suitable for transporting people in vehicles (crash-tested).
Features / components:
- Back: upholstered, width-adjustable, selectable back width, selectable back depth
- Seat: TB3 seat system, seat lift (TB3)
- Seat dimensions: selectable seat depth, selectable seat width, electric seat tilt
- Armrests: upholstered, swivel-down, height-adjustable, angle-adjustable
- Control: joystick control, swivel-down
- Legrests: split / central, swing-away
- Footrests: split
- Wheels: suspension
- Tyres drive wheels: pneumatic tyres; tyres castor wheels: PU tyres
- Brake: motor brake, push-park brake
- Drive: mid-wheel drive
- Batteries
- Charger
- Lighting: active lighting system
- Frame color: black / red-brown / blue / green / yellow
Technical Data:
Overall width: 52 / 54.6 cm
Overall length: 82.6 cm
Seat width: 40.6 / 43.2 / 45.7 / 48.3 / 50.8 cm
Seat depth: 35.5 / 38 / 40.6 / 45.7 / 48.3 / 50.8 / 55.9 cm
Seat height: 44 / 46.7 / 49.2 cm
Back angle: - 5 to 165 degrees
Seat tilt: 50 degrees
Drive wheels: 14 inch; 12.5 inch (with surcharge)
Steering wheels: 5 / 6 inch
Top speed: 6 km/h; 10 km/h (with surcharge)
Battery: 2 x 40 Ah; 55 / 62 Ah (with surcharge)
Range: 32.7 km
Turning radius: 53.3 cm
Obstacle height: 9 cm
Climbing ability: 13.2 percent
Load capacity: 136 kg
Options / Accessories:
- Headrest: selectable size
- Push handles
- Back: electrically adjustable, Adi Q-Back back system
- Seat: various seat cushions, TB4 seat system
- Controls: height-adjustable, various joystick attachments, attendant person control, head control, foot control, chin control
- Legrests: adjustable via gas pressure springs, electrically adjustable, biometric length compensation, height-adjustable
- Wheels Drive wheels: selectable wheel size
- Tires Drive wheels: puncture-proof tires
- Other: abduction wedge
- Frame color: Special colors
Price (without guarantee):
Basic model Q6 Edge 3 Stretto MWD: EUR 13,900.00 plus VAT (recommended retail price)
