Product Type:
Linear stand
Areas of Application:
for example
- to relieve the musculoskeletal system
- to improve the gripping area
Description:

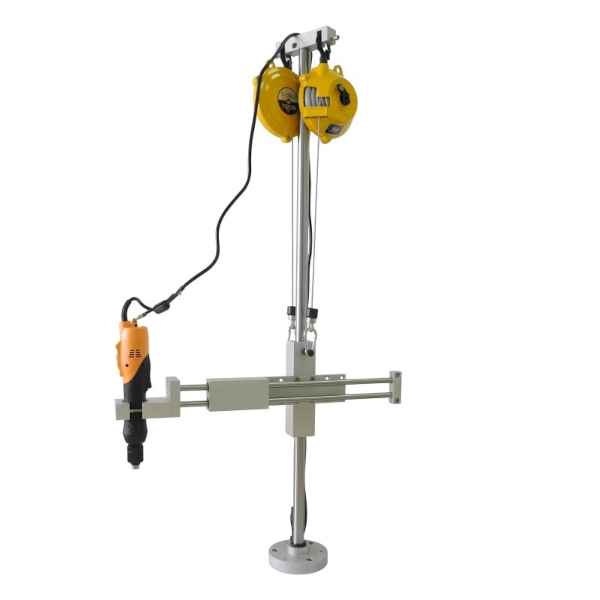

The linear stand is suitable for suspending various screwdrivers and absorbs torques.
Features / components:
- backdriving forces: none
- recirculating ball bushings
- larger working radii on request
Technical Data:
Working radius: 300-630 / 120-470 mm
Rotation range: 360 degrees
max. Torque absorption: 25 / 100 Nm
Max. weight absorption: 6 kg
Weight: 1.5-6 kg
Price (without guarantee):
The price is available on request from the manufacturer / distributor.
