Product Type:

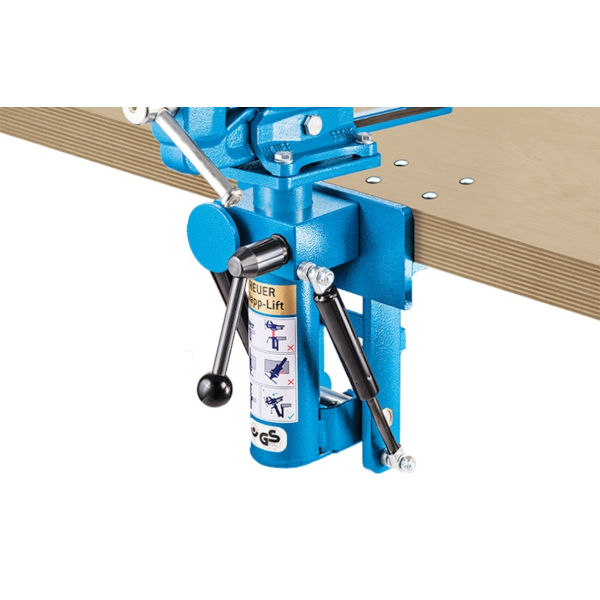

Folding device and height adjustment device for vice
Areas of Application:
for example to relieve the musculoskeletal system
Practical examples with vices
Description:
The vice is folded under the workbench when not in use and the entire work surface is available for other work. Depending on body size, workpiece and type of processing, the vice can be brought into the ergonomically suitable working position with the folding lift. This prevents postural problems, which is particularly important for vocational trainees in schools and training workshops.
Technical Data:
Height adjustment: 175 mm
Rotation range: 360 degrees
Jaw width: 120 / 140 mm
Lowest point: 590 / 630 mm
Folding depth: 460 / 495 mm
Swivel radius: 430 / 470 mm
Load capacity: 4-10 / 10-16 kg
Weight: approx. 14 kg
Price (without guarantee):
691.30 EUR plus VAT (recommended retail price)
