Product Type:
Electric high lift pallet truck
Areas of Application:
for example
- to relieve the musculoskeletal system
- for walking restrictions
Description:

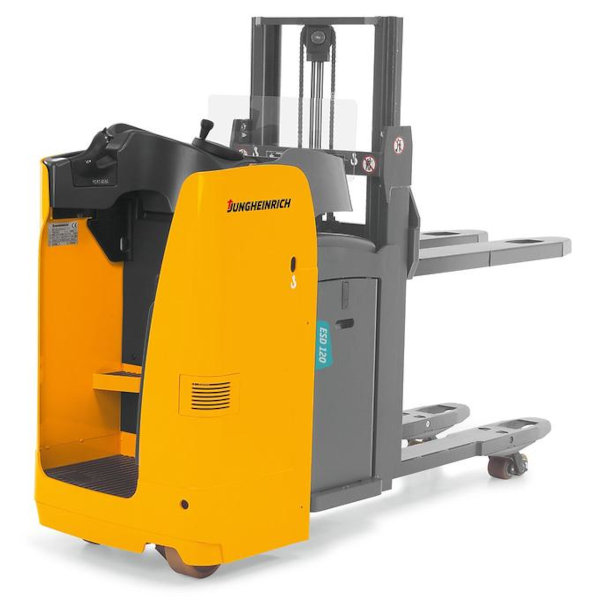

With a width of 760 mm, the stand-on ESD 120 is narrower than a Euro pallet and is suitable for pallet positioning on truck sides as well as for fast truck loading and unloading. The folding seat offers additional comfort when traveling long distances. When folded up, it serves as a backrest. The low access height (245 mm) makes it easier to get on and off frequently. The ESD 220 model is a side seat only and is therefore designed for long-distance use and is suitable for block stacking. The height adjustability of the foot area promotes an ergonomic working position.
Features / components:
- Machine type: electric
- Operation: stand-on or sit-on machine
- Operator's position: operator's platform with cushioning elements, backrest cushion with integrated, foldable half seat, low access height
- Lift: electrohydraulic
- Control: impulse control with SpeedControl
- Brakes: electromechanical
- Steering: electric
- Double-deck loading from truck
Technical Data:
ESD120/ESD220
Overall length: 2260/2185 mm
max. Lift (h3): 1660-1960 mm
Aisle width: 2485/2399 mm
Travel speed: 12/9.1 km/h
Battery voltage: 24V
Max. Load capacity: 2000 kg
Price (without guarantee):
The price is available on request from the manufacturer / distributor.
