Product Type:
Manually controlled wheelchair
Adaptive wheelchair, custom wheelchair
Description:

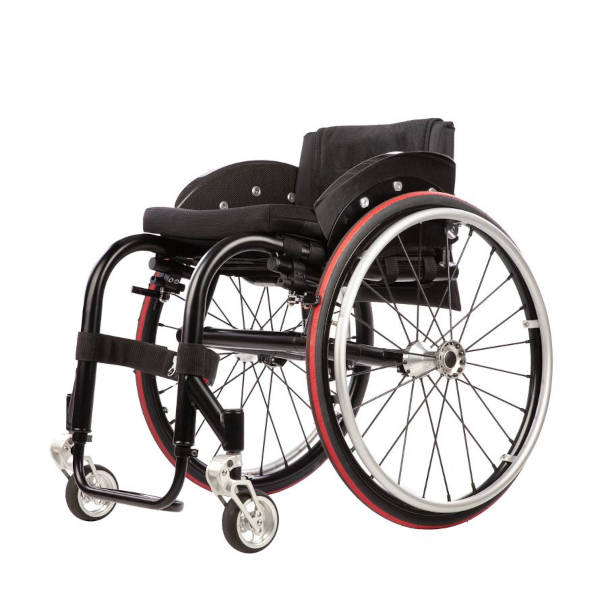

The GTM Shock Absorber is a rigid frame wheelchair with gas pressure shock absorption for individual adaptations.
Features / components:
- Frame: Aluminum, rigid, Y-shaped
- Back: breathable back cover, padded, foldable
- Seat: Velcro straps, adjustable, standard seat cushion
- Seat dimensions: made to measure
- Side parts: removable, plastic
- Footrests: aluminum, height-adjustable, one-piece, angle-adjustable, fixed, removable
- Drive: push rim drive
- Push rims: Aluminum, attachment narrow / wide
- Wheels: selectable wheel sizes, selectable camber, selectable drive wheels (Terrain / Sport / Standard), various caster forks
- Tires drive wheels: puncture-proof tires; tires caster wheels: aluminum / plastic
- Brake: pressure brake / scissor brakes
- Frame color: various colors
Technical Data:
Seat width: individually adjustable
Seat depth: individually adjustable
Seat height: individually adjustable
Back angle: 0 / 3 / 6 / 9 / 12 degrees
Drive wheels: 24 / 25 / 26 inches
Castor wheels: 4 / 5 inches
Wheel camber: 1 / 2 / 3 / 4 / 5 degrees
Load capacity: 120 kg
Options / Accessories:
- Frame: V-shaped / U-shaped / tapered
- Push handles: short / medium / long, screw-in, foldable, aluminum / plastic
- Back: various back cushions (leather), rigid, backrest adjustment (+5 cm), ergonomic
- Seat: carbon, seat plate, ergonomic, various seat cushions, leather cover
- Side parts: Carbon / aluminum, foldable, firmly welded
- Armrests: removable
- Leg supports: Calf strap
- Footrests: titanium / carbon / plastic, split, individual dimensions, FreeWheel, footplate, anti-slip strap
- Push rims: stainless steel / titanium, push rim cover, various special push rims
- Tires Drive wheels: various versions
- Brakes: various versions
- Other: anti-tip device, safety belt
- Frame color: Special colors; Cover color: various colors; Special color set
Price (without guarantee):
Basic model GTM Shock Absorber: EUR 6,750.00 plus VAT (recommended retail price)
