Product Type:
Manually controlled wheelchair
Adaptive wheelchair
Description:

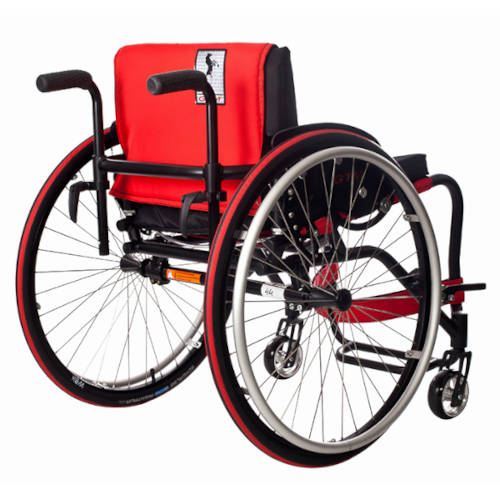

The GTM1 has a rigid, welded frame and has an anti-folding device that secures the backrest and prevents it from folding backwards and forwards in an uncontrolled manner. The GTM1 is available in two versions. The standard version has a seat angle of 6 degrees (for paraplegia), 8 or 10 degrees.
Features / components:
- Frame: Aluminum, rigid
- Backrest: rigid, breathable upholstery, height-adjustable
- Seat: angle-adjustable, breathable upholstery, seat and backrest cover with Velcro
- Seat dimensions: seat width, seat depth, seat height selectable
- Side parts: Plastic, removable or foldable
- Footrests: height-adjustable in steps
- Drive: push rim drive
- Push rims: Aluminum
- Wheels: selectable wheel sizes of the drive wheels, selectable wheel camber
- Frame color: black, silver, graphite, navy blue, cherry, green; upholstery: black
Technical Data:
Seat width: 30/32/34/36/38/40/42/44/46 cm
Seat depth: 35/37.5/40/42.5/45 cm
Seat height: 42/43.5/44/46 cm
Seat angle: 6/8/10 degrees (standard) 13 degrees (GTM Tetra 1)
Backrest height: 10-45 cm (in 1 cm increments)
Armrest height: 49/49.3/49.5/49.8/50/51/51.3/51.5/51.8/52/52.5 cm
Drive wheels: 22/24/26 inches
Camber: 0/2/3/5 degrees
Castor wheels: 4 inch (standard); 3/5 inch (extra charge)
Options / Accessories:
- Frame: polished, reinforced, upholstered
- Push handles: screw-on, integrated in the frame or integrated in the backrest
- Seat: rigid
- Side panel: carbon fiber
- Armrests: height-adjustable
- footrests: split, foldable
- push rims: steel, titanium, rubber cover
- wheels: selectable wheel sizes of the swivel wheels
- backrest: anatomically shaped
- Other: anti-tip, quick-release axle, upholstery: nappa leather, Alcantara
Price (without guarantee):
GTM1 Standard: 2.995.00 EUR plus VAT (recommended retail price)
