Product Type:

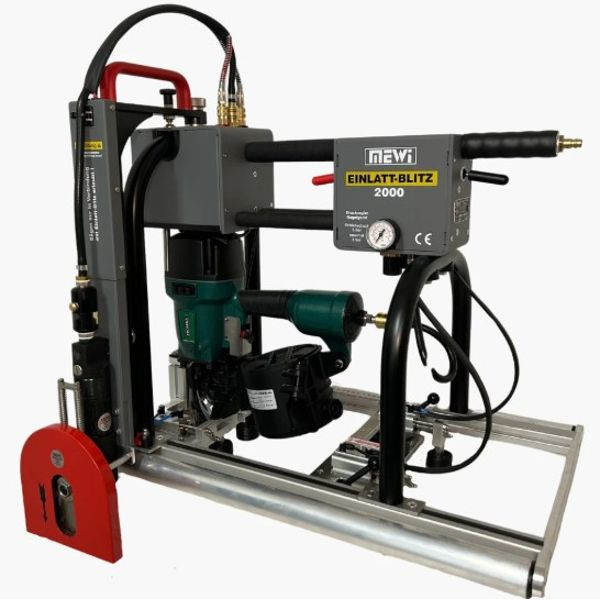

Single batten device
Areas of Application:
for example to relieve the musculoskeletal system
Description:
The battening of roof surfaces also includes measuring and aligning roof battens. Fixing and fastening is done with a hammer or pneumatic nailer. These activities require working in constrained positions and handling heavy manual machinery over a long period of time. The battens are aligned, cut to length and nailed using the single-batten device.
The single-slat device has a spacer that automatically aligns the slats on the surface at the correct distance. This eliminates the need for frequent kneeling or bending. By supporting the upper body on the device when working with the single-slat device, postural work is reduced and extreme bending of the trunk is avoided at the same time. At the same time, hand-arm vibrations, which occur when working with pneumatic nailers, no longer occur.
Overall, a higher performance is achieved compared to conventional working methods.
Features / components:
- cross-cut saw: semi-automatic, with swivel arm
- spacer
- pneumatic
Technical Data:
Device length: 64 cm
Device width: 43 cm
Device height: 54 cm
Nail length: 4.5-9 / 6-1 cm
Nail width: up to 50 cm
Working pressure: 6-8 bar
permissible pressure: 8 bar
Air consumption at 6 bar: 2.6 l / element
Device weight: approx. 15 / 16.5 kg
Price (without guarantee):
The price is available on request from the manufacturer / distributor.
