Product Type:
Roof tile distributor, single-row, double-row for lifts / cranes
Areas of Application:
for example to relieve the musculoskeletal system
Description:

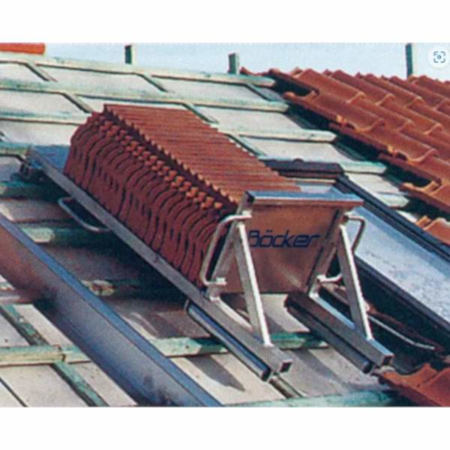

Roof tiles are still distributed on the roof by throwing them from person to person. Typically, up to two tiles (9 kg) are thrown over 3 - 4 meters when covering with concrete roof tiles and up to four tiles (8 kg) when covering with plain tiles. This work is very strenuous, puts a lot of strain on the joints and back and often leads to accidents. The roofing tile spreader is a roller-mounted spreader that can be moved on the roof battens. It can be used to store and distribute tile packs on the roof. The use of the tile transport trolley minimizes the manual transport of loads on the roof. This reduces strain on the hand-arm system and the back. The risk of injury due to slipped tiles, falls or twisted ankles on an unfavorable standing surface is reduced.
Features / components:
- Material: aluminum
- Easy
- Adjustable
- Support surface: always horizontal
- 2 Versions: single-row, double-row with double loading surface and load-bearing capacity for lifts / cranes
Technical Data:
Loading area: 110 x 45 cm / 129 x 41.5 cm / 129 x 85 cm
Roof pitch: up to 50 degrees
Dead weight: 14 / 22 / 39 kg
Load capacity: 200 / 400 kg
Other:
The roof tile distributor is also available for hire.
Price (without guarantee):
The price is available on request from the manufacturer / distributor.
