Product Type:

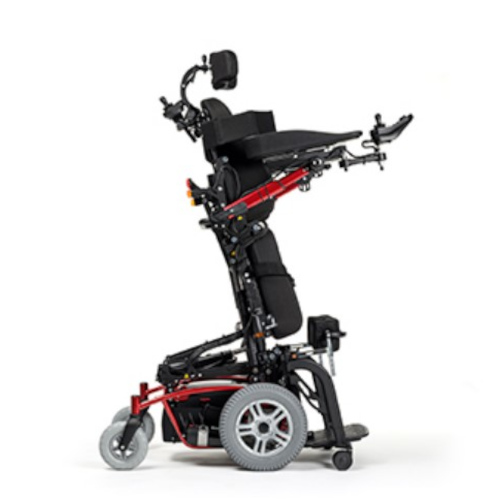

Power wheelchair with front-wheel drive, standing and reclining function
Use: Indoors
Description:
The Navix power wheelchair has various adjustment options. It is available as the Navix SU with electric standing and reclining function. This makes it suitable as a work wheelchair.
Features / components:
- Push bar (SU)
- Back: foldable, manually adjustable, upholstered
- Seat: seat cushion, upholstered
- Seat dimensions: selectable seat width, selectable seat depth, selectable seat height (Navix)
- Armrests: upholstered, hemiplegic supports (Navix), automatically moving along (SU)
- Controls: joystick control, swing-away (SU)
- Footrests: split (Navix) / one-piece (SU), electrically adjustable (SU)
- Wheels: Support castors (SU)
- Tyres: Pneumatic tyres (Navix) / PU tyres (SU)
- Brake: Motor brake
- Drive: Front-wheel drive
- Batteries
- Charger
- Lighting: active lighting system
- Other: anti-tip device, stand-up and reclining function (SU)
- Colors Frame: various colors; Color cover: black
Technical Data:
Navix Navix SU
Overall width: 58 / 63 cm 60.2 / 67 cm
Overall height: 95.6 cm 95.6 cm
Overall length: 105.8 cm 109 cm
Seat width: 40 / 45 / 50 cm 40 / 45 cm
Seat height: 40 / 45 / 47.5 / 50 cm 47 cm
Seat depth: 38 / 40 / 42 / 44 / 46 / 48 / 50 cm 42 / 44.5 / 47 cm
Seat angle: 5 to 10 degrees 3.5 to - 84.5 degrees
Back height: 58 cm 61 cm
Armrest height: 26 - 35 cm 24.2 - 35 cm
Drive wheels: 12 inch 12 inch
Steering wheels: 8 inch 8 inch
Maximum speed: 6 km/h 6 km/h
Battery: 2 x 12 V 38 Ah / 50 Ah (with surcharge) 2 x 12 V 38 Ah / 50 Ah (with surcharge)
Range: 20 / 32 km 20 / 32 km
Turning radius: 125 cm 125 cm
Climbing ability: 15 percent 15 percent
Obstacle height: 5 cm 5 cm
Weight: from 78.8 kg 122 kg
Load capacity: 130 kg 130 kg
Options / accessories:
- Headrest (Navix): height-adjustable, depth-adjustable
- Back: electrically angle-adjustable (Navix), back cushions
- Seat: various seat cushions, seat lift (Navix)
- Seat dimensions: electrically angle-adjustable (Navix)
- Side section: side support (Navix)
- Control: swivel-mounted, table control, attendant control, chin control, various joystick attachments
- Legrests: angle-adjustable, electrically adjustable (Navix)
- Footrests: one-piece (Navix), height-adjustable, angle-adjustable (Navix), electrically adjustable (Navix)
- Tires: PU tires (Navix)
- Other: Therapy table, abduction wedge
Price (without guarantee):
Base price Navix: EUR 5,389.00
Base price Navix SU: EUR 9,627.00
The prices are recommended retail prices plus VAT.
