Product Type:
Manually controlled wheelchair, foldable
Lightweight wheelchair
Description:

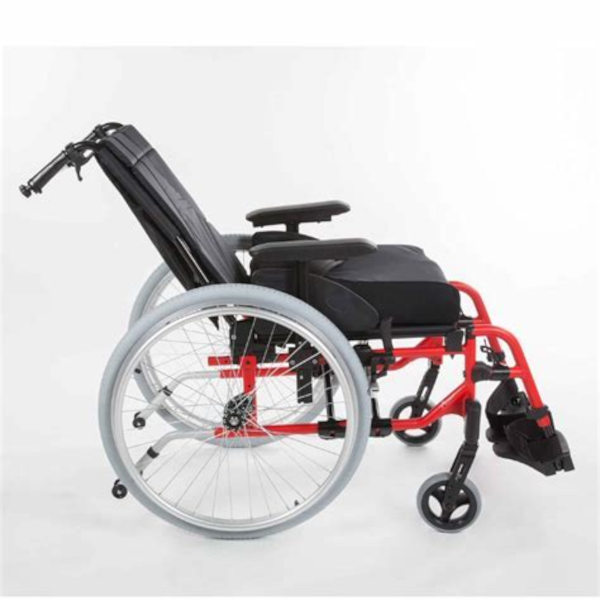

The Action 4 NG is a foldable lightweight wheelchair with double cross brace, which is available in the following versions in addition to the standard version:
- Hemiplegic version (Action 4 NG Hemi) with special Hemi armrests and Hemi steering wheel adapter. It is suitable for hemiplegics thanks to its one-hand operation using a double push rim or hand lever drive.
- Heavy Duty version (4 NG Heavy Duty) with an increased load capacity of 150 kg and fewer accessories is suitable for obese people, among others.
Features / components:
- Frame: Aluminum frame, foldable, double cross brace
- Push handles: fixed
- Back: lumbar bend, fixed, back height selectable / height-adjustable, upholstered, adjustable back cover (4 NG, Hemi), back brace (Heavy Duty)
- Seat: upholstered
- Seat dimensions: selectable seat width, selectable seat height, depth-adjustable, selectable seat depth
- Side parts
- Armrest: removable, swing-away, height-adjustable, Desk / long, Hemi armrest (Hemi)
- Legrests: 80 degrees, swivel
- Footrest: split, angle-adjustable, depth-adjustable, one-piece, height-adjustable, heel straps
- Drive: push rim drive
- Push rims: Aluminum
- Wheels: selectable wheel sizes (4 NG, Hemi), reinforced (heavy duty), wheelbase extension
- Tyres: drive wheels: pneumatic tyres / puncture-proof tyres; swivel wheels: pneumatic tyres / puncture-proof tyres
- Brake: pressure brake
- Lighting: passive lighting
- Other: fixed axle / thru axle, Hemi steering wheel adapter (Hemi)
- Frame color: various colors; Cover color: black
Technical Data:
Model: 4 NG Heavy Duty Hemi
Overall width: SB +19 cm SB +16 cm SB +19 cm
Overall length: 99 - 118 cm 99 - 118 cm 99 - 118 cm
Overall height: 81 - 104 cm 81 - 104 cm 81 - 104 cm
Seat width: 38 / 40.5 / 43 / 45.5 / 48 cm 50.5 / 55.5 / 60.5 cm 38 / 40.5 / 43 / 45.5 / 48 cm
Seat depth: 40 - 45 / 45 - 50 cm 40 / 45 / 50 cm; 40 - 45 / 45 - 50 cm 40 / 45 / 50 cm; 40 - 45 / 45 - 50 cm
Seat height: 38.5 / 41 / 43.5 / 46 / 48.5 / 51 cm 46 / 48.5 / 51 cm 36 / 38.5 / 41 / 43.5 / 46 / 48.5 / 51 cm
Seat angle: 0 / 3 / 6 degrees 0 / 3 / 6 degrees 0 / 3 / 6 degrees
Back height: 38 - 46 cm; 40 / 43 / 51 cm 38 - 46 cm 38 - 46 cm; 40 / 43 / 51 cm
Back angle: 0 / 7 degrees / 0 - 30 degrees (partial surcharge) 0 / 7 degrees / 0 - 30 degrees (partial surcharge) 0 / 7 degrees / 0 - 30 degrees (partial surcharge)
Drive wheels: 22 / 24 inch 24 inch 12 / 20 / 22 / 24 inch
Castor wheels: 5 / 5.5 / 6 / 8 inch 8 inch 5 / 5.5 / 6 / 8 inch
Weight: from 14 kg from 14 kg from 14 kg
Load capacity: 125 kg 160 kg 125 kg
Other:
SHI-assistive product numbers:
Action 4 NG: 18.50.02.2087
Action 4 NG Heavy Duty: 18.50.02.3028
Action 4 NG Hemi: 18.50.03.0143
Action 4 NG Hemi (with single arm lever drive): 18.46.04.2006
Action 4 NG Hemi (with double push rims): 18.46.04.0017
Options / Accessories:
- Frame: Transit version (Hemi)
- Push handle: height-adjustable (4 NG, Hemi)
- Headrest / neck support (4 NG, Hemi)
- Back: angle-adjustable backrest, fold-down, Matrx positioning backrest (4 NG, Hemi), various back cushions
- Seat: various Matrx seat cushions
- Armrests: various Versions:
- Leg support: 0 - 75 degrees, amputee leg support, swing-up, calf pad, calf strap
- Footrest: one-piece, depth-adjustable, angle-adjustable
- Drive: one-hand drive (4 NG, Hemi), one-hand lever operation (4 NG, Hemi)
- Push rims: Anti-slip coating, double handrims (4 NG, Hemi)
- Wheels: reinforced (4 NG), active rear wheel position, amputation position
- Tires: drive wheels: lightweight tires
- Brake: drum brake, pull brake, one-hand brake (4 NG, Hemi), brake lever extension
- Electrical components: Alber additional drives
- Other: transport attachment kit, safety belt, tipping aid, anti-tip device, therapy table
- Frame color: Special colors
Price (without guarantee):
Action 4 NG: 1.568,00 EUR
Action 4 NG Hemi: 1.659,00 EUR
Action 4 NG Heavy Duty: 1.687,00 EUR
The prices are recommended retail prices plus VAT.
