Product type:
Transport wheelchair
Lightweight wheelchair
Description:

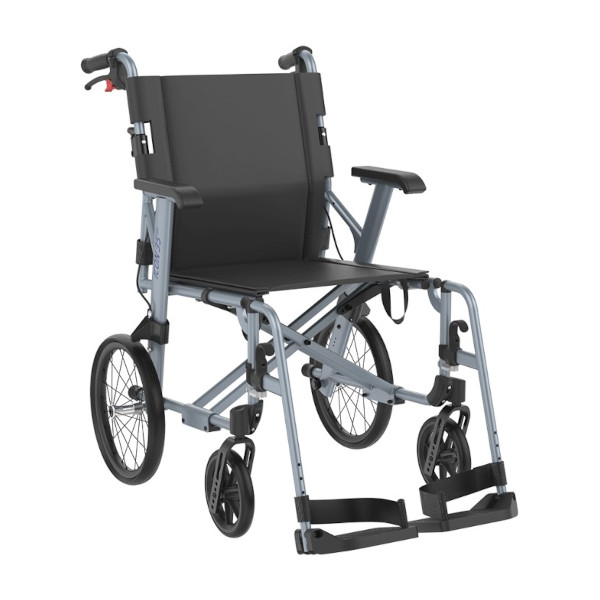

The Icon 35 BX (basic version) and the Icon 35 LX (luxury version) are ergonomic, foldable transport wheelchairs with various adjustment options. Both models are lightweight wheelchairs.
Features / components:
- Frame: Aluminum, foldable
- Push handles
- Back: upholstered, ergonomic
- Seat: upholstered
- Seat dimensions: selectable seat width, height-adjustable
- Armrest: height-adjustable (Icon LX only)
- Legrests: removable, can be swiveled away
- Footrests: split, height-adjustable, removable
- Drive: push drive
- Tires: drive wheels: PU tires; castor wheels: PU tires
- Brake: attendant brake
- Other: Tipping aid, carrying handle
- Color: Frame: Ice blue; Cover: black (Icon BX), black / gray (Icon LX)
Technical data:
Icon 35 BX Icon 35 LX
Overall width: 65 cm (at 14 inches) / 74 cm (at 22 inches) 60 cm (at 14 inches) / 69 cm (at 22 inches)
Overall length: 105 cm 105 cm
Overall height: 91 cm 91 cm
Seat width: 45 / 50 cm 45 / 50 cm
Seat depth: 40 cm 40 cm
Seat height (front): 44-49 cm 44-49 cm
Seat height (back): 44 cm 44 cm
Backrest height: 42 cm 42 cm
Armrest height: 20 cm 18-25 cm
Folding dimensions (W x H x L): 27 x 74 x 65 cm 27 x 74 x 65 cm
Drive wheels: 7 inch 7 inch
Steering wheels: 14 / 22 inch 14 / 22 inch
Weight: 8.2 kg 9.0 kg
Load capacity: 125 kg 125 kg
Options / accessories:
- Other: anti-tipper, stability bars, lateral support
Price (without guarantee):
The price is available on request from the manufacturer / distributor.
