Product Type
Wheelchair base for fitting with a seat shell,
Push rim wheelchair for children
Description

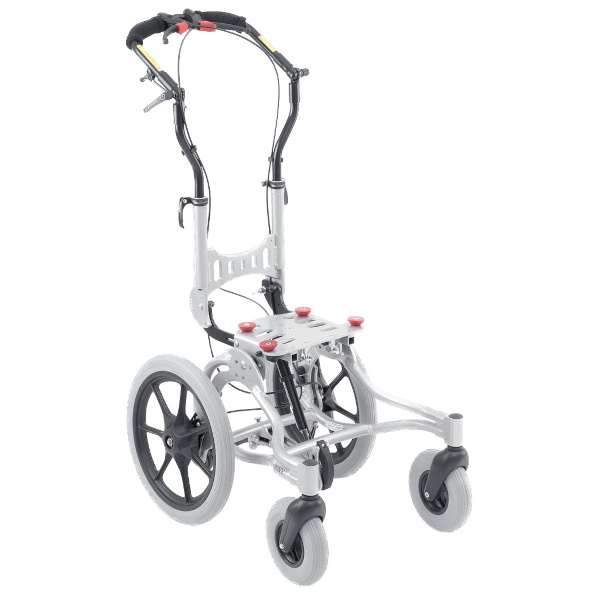

The Outdoor MINY seat shell base for children is available in different seat widths and can be combined with various seating systems. The wheelchair base is suitable for transporting people in vehicles (crash-tested) and is available in three sizes.
Features
Back: depth-adjustable, angle-adjustable
Seat: trapeze adapter mount for seat shells
Seat dimensions: selectable seat width, depth-adjustable, height-adjustable, angle-adjustable, seat tilt via gas pressure spring
Drive: push rim drive
Push rims: Aluminum, push rim cover
Wheels: choice of wheel sizes, profiled wheels with integrated handrim
Tires Drive wheels: puncture-proof tires / pneumatic tires
Other: anti-tip device, tipping aid, custom-made, additional accessories
Color: Frame: various
Pushing device: push handles, height-adjustable, angle-adjustable
Headrest: yes
Side parts: yes
Footrests: one-piece, height-adjustable, angle-adjustable, can be folded up to the rear, anti-slip coating
Brake: drum brake, parking brake, knee lever brake
Frame: Aluminum, abducted
Technical data
Overall width (+ wheel camber): 50 (+ 5) cm 55 (+ 5) cm 60 (+ 5) cm
Overall length: 75 / 78 cm 75 / 78 cm 75 / 78 cm 75 / 78 cm
Overall height: 98 - 110 cm 98 - 110 cm 98 - 110 cm 98 - 110 cm
Seat width: 30 cm 35 cm 40 cm
Seat depth: 23 - 30 cm 23 - 30 cm 23 - 30 cm
Seat height (up to adapter plate): 40 - 45 cm 40 - 45 cm 40 - 45 cm 40 - 45 cm
Wheel camber: 6 degrees 6 degrees 6 degrees
Weight: 16.5 kg 17 kg 17.5 kg
Load capacity: 60 kg 60 kg 60 kg
Size: Miny SB 30 Miny SB 35 Miny SB 40
Drive wheels: 12 / 16 / 20 / 22 / 24 inches 12 / 16 / 20 / 22 / 24 inches 12 / 16 / 20 / 22 / 24 inches
Price (without guarantee)
The price is available on request from the manufacturer / distributor.
