Kuvaus

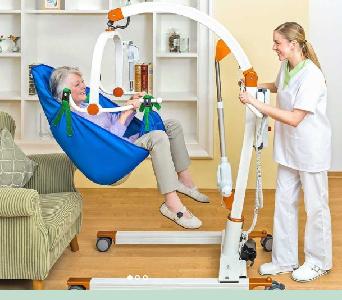

Passive lift with electric tilt yoke for clip slings
Capacity: 185kg
Chassis: 1290mm x 700mm
Passive arc lift with electric tilt yoke for effortless, precise transfers without extra force. For use with clip slings.
CARLO has a large lifting range that allows transfers from both the floor and a changing table. A large reach ensures plenty of legroom, even with 360 rotation.
Very easy to move thanks to its aluminium chassis and high-quality closed castors. Electric height adjustment (with emergency lowering) and electric chassis spread.
System with replaceable batteries, remote control with optical indication of faults, maintenance and battery charge.
Supplied as standard with wall charger and 24V battery from LINAK.
Technical data:
Powder-coated aluminium
Chassis: 1290mm x 700mm (height: 125mm)
Internal width: (closed/spread) 540mm / 1040mm
External width: (closed/spread) 700mm / 1180mm
Lifting range: 1400mm
Max. patient weight 185kg
Colour: white/orange
Product video: https://www.youtube.com/watch?v=pfbVPK1ZANE
