ratioLIFT XS Knickarm-Balancer

Product Type Articulated arm balancer Description The ratioLIFT XS series are pneumatic articulated arm balancers up to 80 kg with uniform balance behavior, flexible mounting options and modular equipment for a wide range of gripper and control variants.
The devices are suitable for applications ranging from light gripped goods to vehicle components and glass panes.
They can be used to relieve the musculoskeletal system.

Further information:

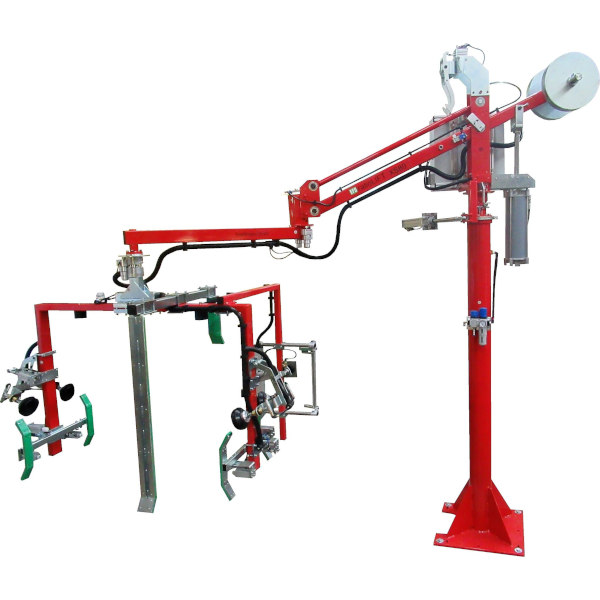

Example of a working arrangement with an articulated arm balancer Features Movability: can be moved by control command or semi-automatically using a friction wheel drive Spring-loaded brake: pneumatic spring-loaded brake in main and coupling bearings Precision bearings: available Options: Ceiling column, ceiling trolley Technical data Working radius: 2200 mm Lifting height: 1370 mm Operating pressure min.: 6 bar Noise level: 70 dB Weight of XS 50 model: 140 kg Dead weight model XS 80: 240 kg Load capacity with gripping device model XS 50: 50 kg Load capacity with gripping device model XS 80: 80 kg Price (without guarantee) The price is available on request from the manufacturer / distributor.
