Description

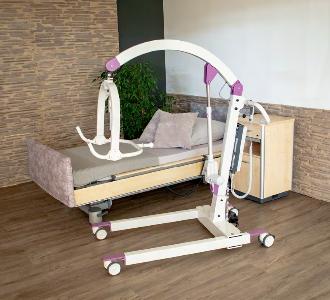

Passive arc lift with coat rack yoke for lifting straps with loops.
CARLO has a large lifting range that allows both transfers from the ground and from a changing table. A large reach ensures plenty of legroom, even with 360° rotation. Very easy to move thanks to its aluminium chassis and high-quality closed castors.
Electric height adjustment (with emergency lowering) and electric chassis spread. System with replaceable batteries, remote control with optical indication of faults, maintenance and battery charge.
Supplied as standard with wall charger and 24V battery from LINAK.
Technical data:
Powder coated aluminium
Chassis: 1290mm x 700mm (height: 125mm)
Internal width: (closed/spread) 540mm / 1040mm
External width: (closed/spread) 700mm / 1180mm
Lifting range: 1400mm
Max. patient weight 185kg
