Product Type:

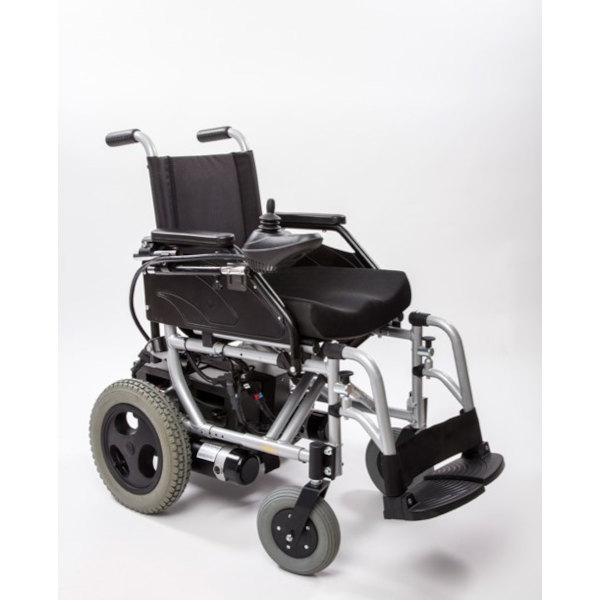

Electric wheelchair with rear-wheel drive, foldable
Use: Outdoor and indoor
Description:
The Evolution E and Evolution E 18.82 electric wheelchairs have various adjustment options. They are available in three sizes. The Evolution E 18.82 has an optional seat lift, seat tilt and stand-up aid. The wheelchairs are optionally suitable for transporting people in vehicles (crash-tested; surcharge).
Features / components:
- Frame: selectable frame size, foldable
- Push handles
- Back: selectable backrest height, height-adjustable, padded, backrest strap, adjustable backrest (height-adjustable; ONLY 18.82)
- Seat: seat cover nylon
- Seat dimensions: selectable seat width, width-adjustable, selectable seat depth, depth-adjustable
- Side parts
- Armrests: height-adjustable, removable, swivel (ONLY 18.82)
- Controls: joystick control
- Legrests: removable, swivel-off, length-adjustable
- Footrests: split, height-adjustable
- Tires Drive wheels: pneumatic tires; tires Steering wheels: pneumatic tires
- Brake: motor brake
- Drive: rear-wheel drive
- Batteries
- Charger
- Lighting: passive lighting
- Frame color: various colors
Technical Data:
Evolution E Evolution 18.82
Overall width: SB +18 cm SB + 18 cm
Overall height: 88 - 96 cm 88 - 98 cm
Overall length: 103 cm (frame 1) / 111 cm (frame 2 / 3) 98 cm
Seat width: 36 - 42 cm (frame 1) / 42 - 48 cm (frame 2) / 46 - 52 cm (frame 3) 36 - 42 cm (frame 1), 42 - 48 cm (frame 2), 46 - 52 cm (frame 3), 55 cm (surcharge
Seat height: 50 cm; 55 cm (surcharge; ONLY 18.82) 50 cm
Seat depth: 38 - 46 cm (frame 1), 42 - 54 cm (frame 2 / 3) (in 2 cm increments) 40 - 52 cm
Back height: 36 - 42 cm (frame 1) / 37 - 45 cm (frame 2 / 3) 36 - 42 cm (frame 1), 40 - 55 cm (frame 2 / 3)
Back angle: up to 80 degrees (surcharge) 90 - 105 degrees
Armrest height: 68 - 78 cm 70 - 75 cm
Transport dimensions (W x L x H): 45 x 80 x 96 cm 64 x 77 x 96 cm
Drive wheels (rear wheels): 12 inch 12 inch / 16 inch (surcharge)
Steering wheels (front wheels):
8 inch 8 inch / 9 inch (surcharge)
Top speed: 6 km/h 6 km/h
Batteries: 42 Ah 42 Ah ; 65 Ah (surcharge)
Range: 20 - 30 km 25 km
Obstacle height: 4 cm 4 cm / 7 cm (with surcharge)
Weight: from 70 kg46.05.0010
Evolution E 18.82: 18.50.04.0114
Options / Accessories:
- Headrest: various versions
- Backrest: Adjustable back (height-adjustable), back extension, manual / electric (NUR 18.82) angle-adjustable, back plate, back cushions, sliding back system (NUR 18.82); ergonomic (NUR 18.82)
- Seat: Seat plate, various seat cushions, sliding seat (NUR 18.82), electric seat tilt (NUR 18.82), stand-up aid (NUR 18.82), catapult seat (NUR 18.82), electric seat lift (NUR 18.82)
- Seat dimensions: seat extension (NUR 18.82), booster seat (NUR 18.82)
- Side parts: side support, height-adjustable
- Armrests: swing-away, upholstered (NUR 18.82)
- Controls: swing-away, table center control, chin control, occipital control, various attachments, attendant control R-Net
- Legrests: angle-adjustable, electrically adjustable (NUR 18.82), swing-away (NUR 18.82), calf support (NUR 18.82)
- Footrests: angle-adjustable, swing-away (NUR 18.82)
- Wheels: suspension (NUR 18.82)
- Tyres: puncture-proof tyres
- Lighting: active lighting system
- Other: tipping aid, anti-tip wheels (height-adjustable), kerb lift
Price (without guarantee):
Basic model Evolution E: EUR 5,975.00
Basic model Evolution E 18.82: EUR 7,824.00
The prices are recommended retail prices plus VAT.
