Product Type:
Power wheelchair with rear-wheel drive / front-wheel drive
Application: Outdoor and indoor use
Description:

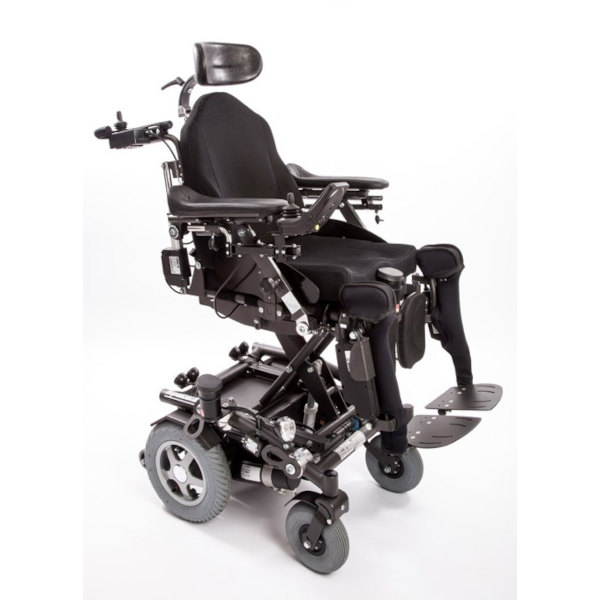

The Space power wheelchair is available with front-wheel drive or rear-wheel drive. It can be optionally equipped with an electric seat tilt. The wheelchair is suitable for transporting people in vehicles (crash-tested). The wheelchair is also available in the XL 19.98XL version with a higher load capacity for an additional charge.
Features / components:
- Frame: Tubular steel frame, selectable frame sizes
- Back: upholstered, manually angle-adjustable, adjustable backrest, height-adjustable, foldable
- Seat: upholstered
- Seat dimensions: selectable seat width, width-adjustable, selectable seat height, height-adjustable, selectable seat depth, depth-adjustable
- Side parts: removable
- Armrests: padded, height-adjustable, removable
- Controls: joystick control, right / left, swivel
- Legrests: swivel, removable
- Footrests: split
- Wheels: suspension, lane stabilizer (space front-wheel drive)
- Tyres: Pneumatic tires
- Brake: motor brake
- Drive: rear-wheel drive / front-wheel drive
- Batteries
- Charger
- Lighting: active lighting system
- Frame color: various colors
Technical Data:
Total width: 68 cm
Total length: 99 cm
Overall height: 84 - 99 cm
Seat width: 36 - 42 cm (frame 1) / 42 - 46 cm (frame 2) / 46 - 52 cm (frame 3); 50 / 55 / 60 cm (with surcharge; 19.98XL)
Seat depth: 38 - 50 cm (frame 1) / 40 - 52 cm (frame 2 / 3)
Seat height: 47 cm (frame 1) / 50 cm (frame 2 / 3); +5 cm (with surcharge)
Seat tilt: up to 30 / 50 degrees (with surcharge)
Back height: 34 - 42 cm (frame 1) / 40 - 52 cm (frame 2 / 3)
Back angle: 20 degrees (manually adjustable) ; 62 degrees (electrically adjustable; with surcharge)
Transport dimensions (W x L x H): 68 x 77 x 72 cm
Drive wheels: 16 inch
Steering wheels: 9 inch
Maximum speed: 6 km/h
Battery: 2 x 24 V 65 Ah
Range: 30 km ; 35 km (with surcharge)
Obstacle height: 6 cm ; 7 cm (with surcharge)
Weight: 116 kg
Load capacity: 140 kg; 180 kg (surcharge; 19.98XL)
Options / Accessories:
- Frame: reinforced version (19.98XL)
- Push bar: adjustable
- Headrest: various versions
- Back: back plate, back cushion, ergonomically shaped, sliding back system, electric angle adjustment
- Seat: sliding seat, seat plate, seat cushion, catapult seat
- Seat dimensions: special seat widths, seat elevation +5 cm, electric seat tilting
- Side parts: Pads, swing-away, side insert for seat width adjustment
- Armrests: swing-away, upholstered, depth-adjustable
- Controls: various attachments, companion control, table control, head control, chin control, swing-away
- Legrests: angle-adjustable, calf support, electrically angle-adjustable, swing-away
- Footrests: one-piece / split, angle-adjustable, swing-away
- Wheels: selectable wheel size, steering wheel suspension
- Tires: puncture-proof tires
- Batteries: Additional batteries 80 Ah
- Frame color: Special colors
- Other: Therapy table, stand-up aid, safety belts, tilt protection, approval for passenger transport
Price (without guarantee):
Basic model Space (rear-wheel drive): EUR 9,899.00
Basic model Space (front-wheel drive): EUR 10,428.00
Basic model Space 19.98XL: Surcharge EUR 3,993.00
The prices are recommended retail prices plus VAT.
