Product Type:
Electric wheelchair with front-wheel drive
Application: Outdoor and indoor use
Description:

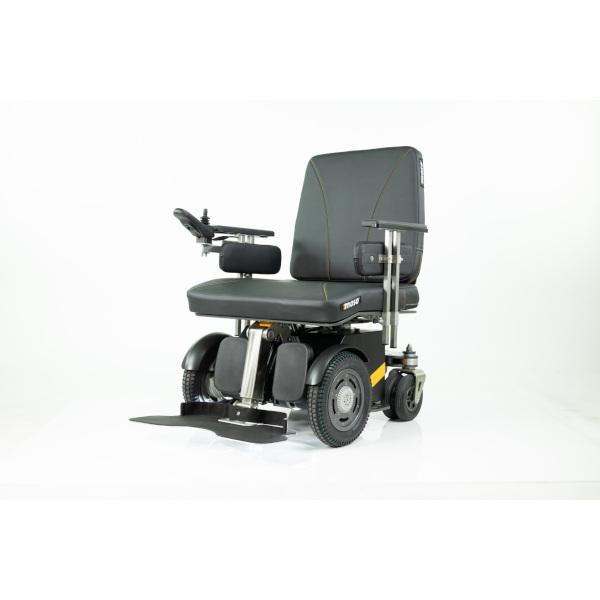

The LEO electric wheelchair can be individually adapted to the user's needs. It has a load capacity of up to 250 kg. The LEOplus wheelchair can be loaded up to 400 kg.
Features / components:
- Frame: reinforced, aluminum
- Back: upholstered, angle-adjustable, selectable back height, selectable back width
- Seat: upholstered
- Seat dimensions: selectable seat depth, selectable seat width, angle-adjustable
- Armrest: upholstered, removable, height-adjustable, width-adjustable
- Control: Joystick control, swing-away
- Legrests: length-adjustable, calf pad
- Footrest: one-piece, angle-adjustable, height-adjustable, swing-away
- Tires rear wheels: puncture-proof tires; tires front wheels: pneumatic tires
- Brake: motor brake
- Control: joystick control
- Batteries: Gel batteries
- Charger
- Lighting: active lighting system
- Other: oscillating axle
- Frame color: silver
Technical Data:
LEO LEOplus
Overall width: from 68 cm from 72 cm
Overall length: 107 - 132 cm (with leg rests) 114 - 139 cm
Overall height: 116.5 cm 30 degrees (with surcharge)
Seat width: max. 70 cm individually on request
Seat depth: 42 - 51 cm individually on request
Seat height (rear): 43 cm 30 degrees (with surcharge)
Seat tilt (electric):
30 degrees (with surcharge) 30 degrees (with surcharge)
Back height: 53 cm individually on request
Back angle: -10 to +50 degrees individually on request
Rear wheels: 7 inch 7 inch
Front wheels: 14 inch 14 inch
Top speed: 6 km/h 6 km/h
Batteries: 2 x 12 V 74 Ah 2 x 12 V 74 Ah
Range: from 71.5 cm individually on request
Climbing ability: 12 percent individually on request
Obstacle height: 5 cm individually on request
Weight: from 150 kg individually on request
Load capacity: 250 kg 400 kg
Options / Accessories:
- Headrest: height-adjustable
- Back: electrically angle-adjustable, back cushion
- Seat: seat cushion
- Seat dimensions: electric seat tilt
- Legrests: electrically angle-adjustable, electrically length-adjustable
- Tires: puncture protection filling for pneumatic tires
- Frame color: anthracite
Price (without guarantee):
Basic model LEO: 19.900 EUR plus VAT (recommended retail price)
Basic model LEOplus: The price is available on request from the manufacturer / distributor.
