Product Type:
Electric wheelchair with standing function, front wheel drive
Use: Outdoor and indoor
Description:

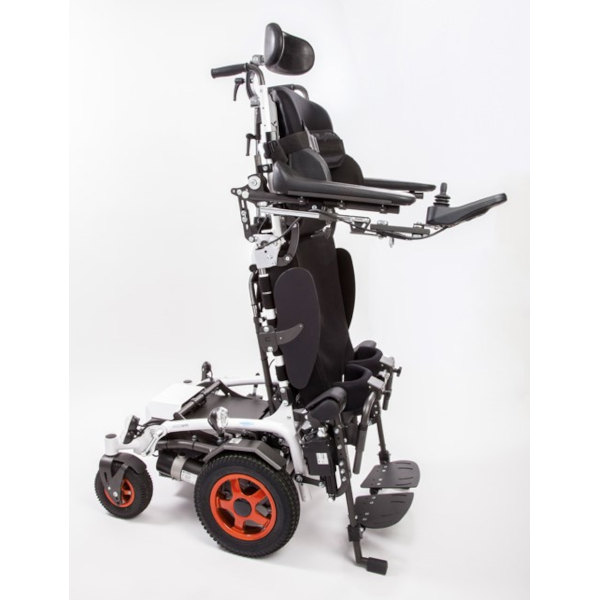

The HI-LO Avanti electric wheelchair has an electric standing function. It has various adjustment options. Three frame sizes are available. The wheelchair is optionally suitable for transporting people in a vehicle (crash-tested).
Features / components:
- Frame: selectable frame size
- Push handles
- Back: foldable, biomechanical compensation, backrest cover (adjustable), manually angle-adjustable, manually height-adjustable
- Seat: electric stand-up function, seat cover (adjustable)
- Seat dimensions: selectable seat width, width-adjustable, height-adjustable, selectable seat depth, depth-adjustable, electric seat tilt
- Armrests: swing-away, wide upholstery
- Controls: joystick control; VR2
- Leg supports: Knee fixation (swing-away, adjustable)
- Footrests: split
- Wheels: front wheel suspension
- Tires: pneumatic tires
- Brake: engine brake
- Drive: Front wheel drive
- Batteries
- Charger
- Lighting: active lighting system
- Other: lane stabilizer, chest strap
- Colours Frame: various colors
Technical Data:
Total width: SB + 20 cm
Overall height: 90 cm
Overall length: 90 cm (frame 1), 105 cm (frame 2 / 3)
Seat width: 36 - 42 cm (frame 1), 42 - 48 cm (frame 2), 46 - 52 cm (frame 3); 55 cm (with surcharge)
Seat height: 47.5 - 52.5 cm
Seat depth: 38 - 50 cm (frame 1), 40 - 52 cm (frame 2 / 3)
Seat tilt: up to 25 degrees
Back height: 42 - 44 cm (frame 1), 42 - 50 cm (frame 2 / 3)
Back angle: 90 - 102 degrees; up to 60 degrees (with surcharge; electric)
Armrest height: 68 - 78 cm
Transport dimensions (W x L x H): 60 x 85 x 80 cm
Drive wheels: 12 inch; 16 inch with (surcharge; reinforced version)
Steering wheels: 8 inch; 9 inch (with surcharge; reinforced version)
Maximum speed: 6 km/h
Batteries: 2 x 42 Ah; 65 Ah (with surcharge; reinforced version)
Range: 25 km; 35 km (with surcharge)
Obstacle height: 4 cm; 7 cm (with surcharge, reinforced version)
Weight: 84 kg; 105 kg (with surcharge; reinforced version)
Load capacity: 120 kg; 160 kg (with surcharge)
Options / Accessories:
- Frame: reinforced
- Headrest: various versions
- Back: firmly upholstered, various back systems, ergonomic, sliding back, back cushions, electrically angle-adjustable
- Seat: firmly upholstered, seat plate, seat cushion, sliding seat, catapult seat
- Seat dimensions: Seat widening, electric seat tilting
- Side parts: side support, swing-away
- Armrests: safety bar, moving, depth-adjustable
- Controls: swing-away, R-NET with LED, various attachments, special controls, accompanying person control
- Legrests: split / one-piece, electrically angle-adjustable, removable, swing-away, electrically adjustable, length-adjustable, knee fixation (depth-adjustable)
- Footrests: angle-adjustable, swing-away
- Wheels: splash guard
- Tyres Drive wheels: puncture-proof tyres; tyres Steering wheels: puncture-proof tyres
- Other: Therapy table, safety belt, approval for passenger transport
- Frame color: Special colors
Price (without guarantee):
Basic model HI-LO Avanti: EUR 12,299.00 plus VAT (recommended retail price)
