Product Type:
Manually controlled wheelchair
Multifunctional wheelchair
Description:

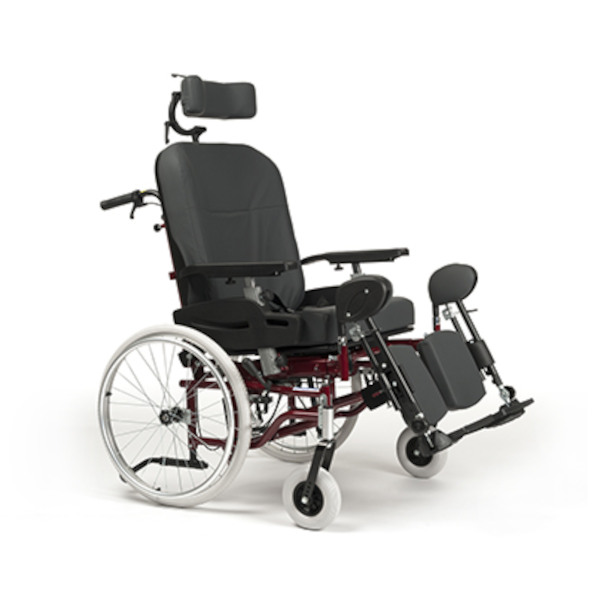

The EZ-1 multifunctional wheelchair is available in two versions: a standard version and a T30 push version (with 12 inch transit wheels). The wheelchair is equipped with functional features.
Features / components:
- Frame: Aluminum
- Push handles: height-adjustable
- Headrest: adjustable
- Back: backrest angle-adjustable up to 30 degrees
- Seat: seat slide, seat height adjustment (axle block), incontinence cover
- Seat dimensions: selectable seat width, depth-adjustable, angle-adjustable, height-adjustable
- Armrest: height-adjustable, depth-adjustable
- Leg supports: length-adjustable, angle-adjustable, standard / shortened, leg support holder (depth-adjustable)
- Footrests: split, angle-adjustable (pointed foot adjustment)
- Drive: push rim drive
- Tires: drive wheels: PU tires; swivel wheels: puncture-proof tires
- Brake: brake lever extension
- Other: thru axle, pad holder, anti-tip device, safety belt
- Frame color: wine red / silver grey; Cover color: grey
The EZ-1 is also available as a push version T30 (with 12 inch transit wheels).
Technical Data:
Overall width: 60 / 63 / 66 / 69 / 72 / 75 / 78 cm
Overall length with footrests: 118.5 cm
Overall height: 102 cm
Seat width: 39 / 42 / 45 / 48 / 51 / 54 / 57 cm
Seat depth: 43 - 52 cm
Seat height: 49 - 62 cm
Seat angle: -5 degrees / +15 degrees
Back height: 60 cm; 50 cm (surcharge)
Back angle: 30 degrees
Armrest height: 19 - 29 cm
Drive wheels: 22 inch; 24 inch (surcharge)
Castor wheels: 8 inch; 5.5 inch (surcharge)
Weight: 43.45 kg
Load capacity: 150 kg
Options / Accessories:
- Side parts: side support
- Armrests: armrests (adjustable)
- Footrests: one-piece, foot box / footrest
- Push rims: Push rim cover
- Wheels: selectable wheel sizes
- Tires: drive wheels: pneumatic tires; castor wheels: pneumatic tires; transit version: pneumatic tires / puncture-proof tires
- Brake: drum brake
- Electrical components: electric push aid
- Other: therapy table (wood / plexi), spreader wedge, infusion holder
Price (without guarantee):
Basic model EZ-1: 3.297.00 EUR plus VAT (recommended retail price)
