Product Type:

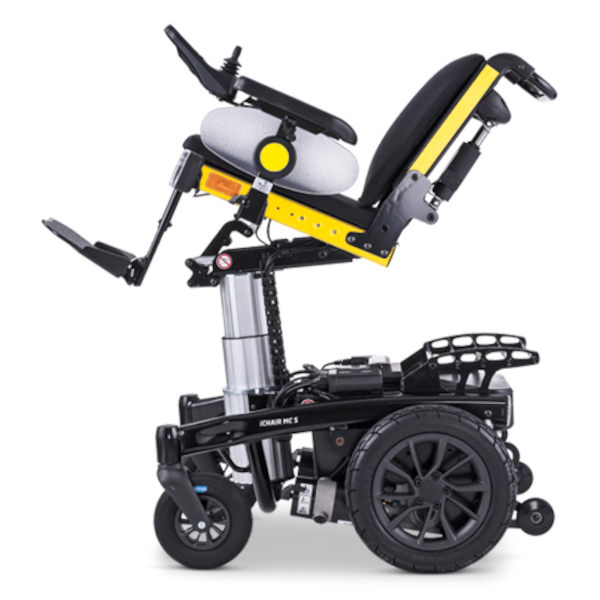

Power wheelchair, children's wheelchair with seat lift, rear-wheel drive
Application: Outdoor and indoor use
The iCHAIR MC S is particularly suitable for children and young people. Furthermore, the iCHAIR MC S is optionally available with a seat lift and electric seat tilt. The wheelchair is suitable for transporting people in vehicles (crash-tested).
Features / components:
- Push bar
- Back: manually angle-adjustable
- Seat: upholstered
- Seat dimensions: selectable seat width, width-adjustable via armrests, selectable seat height, height-adjustable, depth-adjustable, manual seat tilt
- Control: Joystick control, VR2, length-adjustable
- Footrests: split, height-adjustable, fold-up, angle-adjustable
- Side panels
- Armrests: padded
- Legrests: removable, swing-away
- Wheels: selectable wheel size, suspension
- Tires: puncture-protected pneumatic tires
- Brake: motor brake
- Charger
- Batteries
- Lights: active lighting system
- Colors Frame: black
Technical Data:
Overall width: from 59 cm
Overall length (with footrests): 97 cm
Overall height (without headrest): 89 - 92.5 cm
Seat width: 30 - 36 / 34 - 40 / 38 - 44 cm
Seat depth: 30 - 40 cm
Seat height (front): 42 / 43.5 / 44 / 45 / 45.5 / 47 cm
Seat tilt: 0 to +10 degrees (manual); 0 to +22 degrees (electric, with surcharge)
Seat tilt (with seat lift): 0 to 30 degrees (electric, with surcharge)
Back height: 39 / 44 cm
Back angle: -10 to +30 degrees (manual); -5 to +35 degrees (electric, with surcharge)
Seat lift: 20 cm (with surcharge)
Drive wheels: 12.5 inches
Steering wheels: 8 / 9 inches
Top speed: 6 km/h; 10 km/h (with surcharge)
Battery: 43 / 50 Ah; 66 / 80 Ah (with surcharge)
Range: 30 - 40 km
Turning radius: 84 cm
Obstacle height: 6 cm
Climbing ability: 15 percent
Weight: from 89 kg
Load capacity: 75 kg
Options / Accessories:
- Push handles
- Headrest: various Versions:
- Back: electrically angle-adjustable
- Seat: TIGA seat system, seat lift
- Seat dimensions: electric seat tilt
- Legrest: central
- Footrests: one-piece, height-adjustable, angle-adjustable, depth-adjustable, fold-up
- Controls: length-adjustable, height-adjustable, swivel-down, various joystick attachments, attendant control, chin control
- Tyres: puncture-proof tyres
- Other: SP ride stabilization module
- Frame colors: various colors
Price (without guarantee):
Basic model iCHAIR MC S: 10.563.00 EUR plus VAT (recommended retail price)
